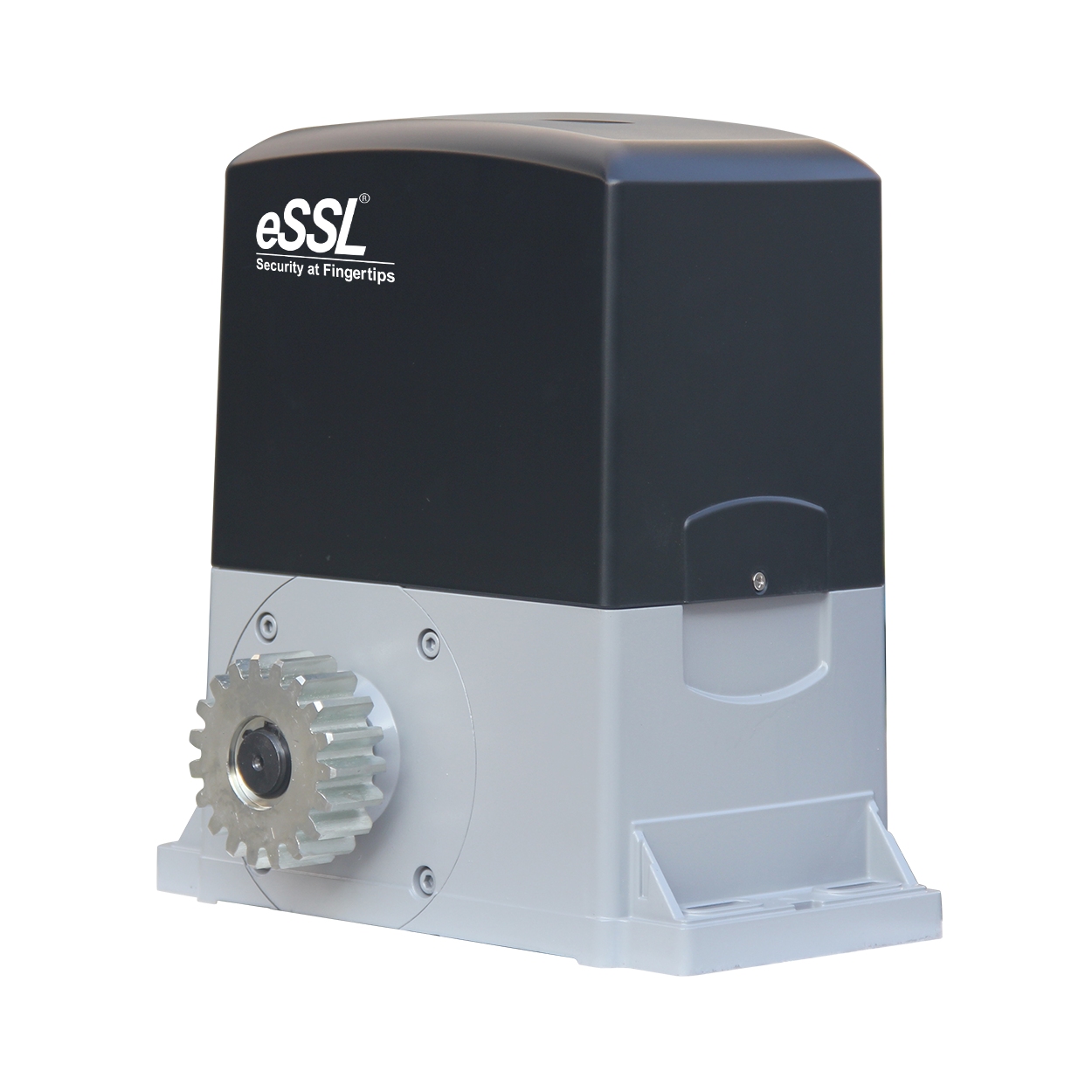

Magnetic limit switch or Mechanical limit switch,Aluminium Gear Box,Thermal protection at 125℃ built in motor winding,In case of power failure, the gate can be opened and closed manually after release clutch.Power supply : 220V AC 50Hz / 110V 60Hz,Motor power : 450W,Motor rotational speed : 1400r/min,Reduce ratio : 30:1,Max. door weight : 1500Kg.Magnetic limit switch or Mechanical limit switch,Aluminium Gear Box,Thermal protection at 125℃ built in motor winding.In case of power failure, the gate can be opened and closed manually after release clutch,Protection class IP55It can change Nylon gear to Copper gear.eSSL Sliding gate motors are developed to automate sliding gates up to a maximum weight of 1500KG, they are ideal solution for entrances at both residential and industrial sector. It can be operated electrically and operated by switch, remote or access control system.It has an unlocking system for manual opening in case of power failure. The aluminum construction provides high strength and resistance. Its Motorization and mechanical system developed for a silent movement. The ideal solution for situations which require fast operating speeds reduced waiting times and high levels of security.Standard PoE,Stores messages and captured pictures in the TF card,Remote unlocking via the client software or the mobile client,Views live videos of door stations and linked cameras,Supports wireless network.

24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 115/230 Vac which reduces energy consumption and ensures a long lifespan of the actuator | Control unit with trimmers and dip-switches | The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety | Operation guaranteed even in the event of a power supply failure through batteries that can be perfectly integrated in the motor (2 x 1.2 Ah) | Anti-crushing system with amperometric obstacle detection | Designed for the connection of the X.BE accessory in order to be integrated with KNX domotics installations and the programming through the app BeUP and the interface PRO.UP Reinforced foundation plate Dima included. Dimensions 326x164.5x2 mm, motor fixing distance 301x75 mm, 4 holes Ø 8.5 mm.Parameter and operation logic regulations through trimmers, dip-switches and buttons | Integrated 433.92 MHz 64-codes radio receiver with ARC coding | Fixed terminal boards | Automatic, semi-automatic and Deadman logic | Motor limit switch inputs | Step by step, stop and photocell inputs | Photocell input programmable as active in opening-closing and photocell active only in closing | Stop input configurable as pedestrian | Output configurable as open gate indicator or second radio channel | Autoset of operating parameters | Electronic torque adjustment with automatic calculation for each point of the stroke (STC SYSTEM).

230 Vac Irreversible 230 Vac electromechanical geared motor | Reliable, quiet, and quick to install geared motor, thanks to its 2 adjustable mechanical stops for opening and closing | Rolled ball screws Ø 20 mm | Easy access release from above.BRAINY: APPLICATION:1 or 2 actuators for swing gates, opposed sliding gates, hydraulic operators, and industrial folding doors.CONTROL UNIT POWER SUPPLY:230 Vac - 50/60 Hz MOTORS POWER SUPPLY,230 Vac / 600 W + 600 W,MAIN FUNCTIONS:Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Encoder input to detect obstacles | Separate limit switch inputs for each motor | Open, close, pedestrian, step by step and stop inputs.

Installed Home Main Slide Door Automation With Video Door Phone,Vallioor

Video Door Phone
